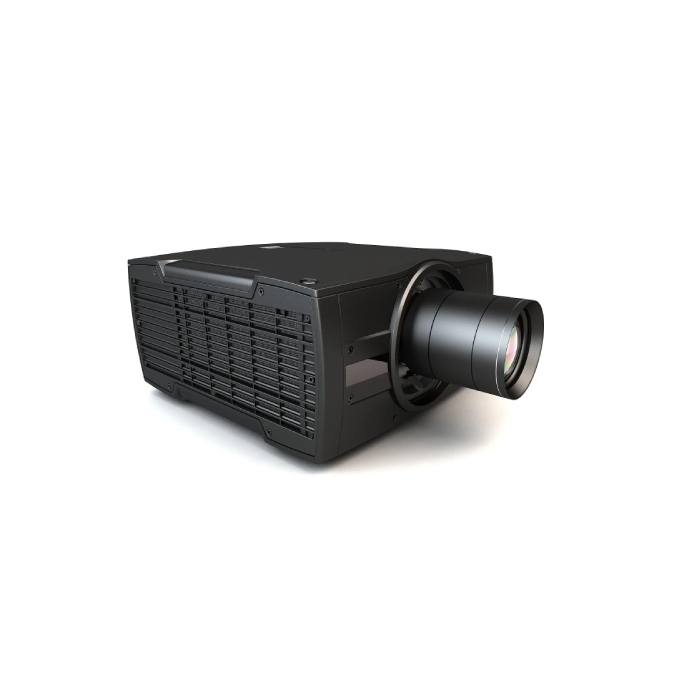

Image 1 of 1
State of the art electronics
Pulse electronics are built on a superior FPGA platform featuring a dual core processor on the industry’s only 20 nm SoChave, with 96 transceiver lanes delivering 3.3Tbps of serial bandwidth.
LED Engine
Bragi uses a new optical engine, incorporating the best elements from previous models and combining them with new technologies, creating an even better optical engine
RealColor
Combining HLD LED illumination with regular LED colors which appear more saturated, the human eye is tricked to interpret this as richer, brighter colors than they are physically measured. Bragi also includes a motorized DCI/P3 filter for improved HDR color accuracy.
Product Specifications
Projector type: Single chip DLP
Light source lifetime: Up to 50,000 hours * Brightness mode dependent
CLO (constant light output): Yes
Optical dowser: Yes
Technology: 0.9" DMD™
Integrated web server: Yes
Resolution: 3,840 x 2,160 (4K UHD)
Diagnostics: via Prospector web interface
Aspect ratio: 1.78:1
Light source: Solid State RGB LED
Light output: Up to 2,600 ANSI Lumens
Contrast ratio: 1,800:1 Sequential 450:1 ANSI
Brightness uniformity: >90%
Input resolutions: From VGA up to 4K UHD (3,840 x 2,160) @ 60Hz or up to 2,560 x 1,600 @ 120Hz
Lens range:
(R9802232) - EN68 (0.30:1) - Periscope Lens (requires vertical installation)
(R9801832) - FLDX UST (0.41:1) - 90° Lens
(R9802244) - EN67 (0.65:1)
(R9802243) - EN66 (0.80 - 1.21:1)
(R9802003) - EN76 (0.95 - 1.30:1)
(R9802242) - EN63 (1.20 - 1.70:1) *
(R9802241) - EN61 (1.70 - 2.50:1) *
(R9801211) - EN44 (2.50 - 4.60:1)
*Standard Lens Option(s)
Optical lens shift: Up to 88% vertical lens shift & up to 38% horizontal lens shift (depending on lens selection)
Color correction: P7 RealColor™
Color gamut: REC.709 DCI (P3) via internal filter
Image processing: Embedded Warp & Blend Engine
WARP: 4-Corner Warp & Bow Correction via Warp Engine
Orientation: 360° Rotation
Network connection: 10/100 Ethernet via RJ45 connection
HDR: HDR10
3D: Active Stereoscopic 3D Additional hardware required please contact an authorized Barco representative for details
Inputs: 1 x HDMITM 2.0 (HDCP 2.2) 1 x HDBaseT (HDCP 1.4 - 9Gbps only) 2 x Dual Link DVI-D 2 x Display Port (1.2) 12G-SDI 1 x RJ45 Ethernet 1 x RS232 1 x Remote Control (RC) 3 x USB (2 x Rear, 1 x Front) DMX (1 x Input, 1 x Output)
Shipping Dimensions:
Excluding lens
464 x 679 x 773 mm
18.27 x 26.7 x 30.4 in
Control: IR, RS232, IP, 12v Trigger Driver modules available for: Crestron, Control4, RTI & Savant NOTE: 12v Trigger(s) do not follow standard functionality, and require an IP command to enable / disable them. Download our integration guide for more information.
Shipping weight: TBC
Power requirements: 100 - 240V / 50 - 60Hz
Standard accessories: Power Cord, Remote Control
Certifications: CE, FCC Class A and cCSAus
Power consumption: 570 W - Max
Noise level (typical at 25°C/77°F): 30 - 33 dB(A) Max
24/7 operation: This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.
Operating temperature: 10 to 45 °C at Sea Level Optimal Set Point: 20 °C
Operating humidity:
20 to 80% (relative humidity)
Service required following 20,000 hours use
BTU per hour: 1,945 BTU/h - Max
Airflow requirements:
Air Inlet (from Rear w/Feet Down): Right Side
Exhaust (from Rear w/Feet Down): Rear Clearance Requirements:
Front: 1cm
Left:1cm
Right: 25cm
Rear: 25cm
Top: 1cm
Exhaust airflow: 58 ft3/min @ 22.9 °C 99 m3/hour @ 22.9 °C
Dimensions (WxLxH): (Excluding lens) 450 x 482 x 255 mm, 17.7 x 19 x 10 in.
Weight: (Excluding lens) 21.5 kg / 47.4 lbs
Warranty: Limited 3 years parts and labor, extendable up to 5 years
