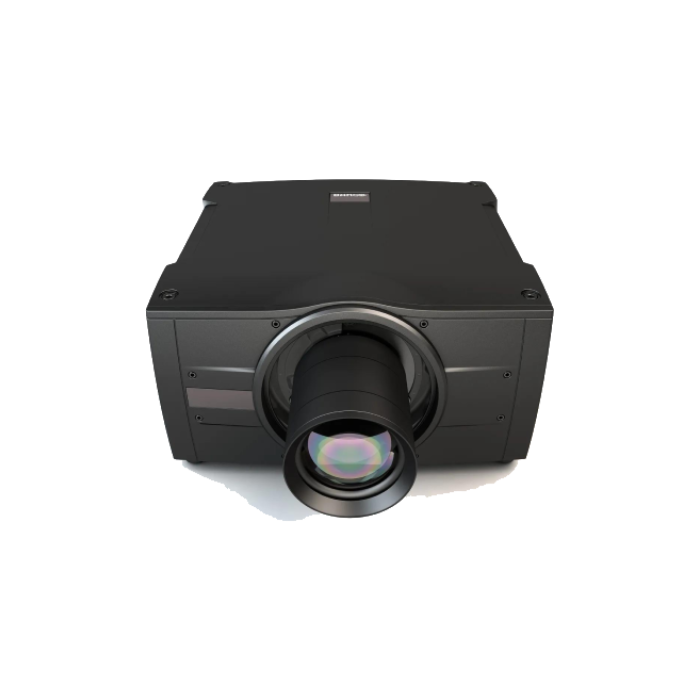

Image 1 of 2

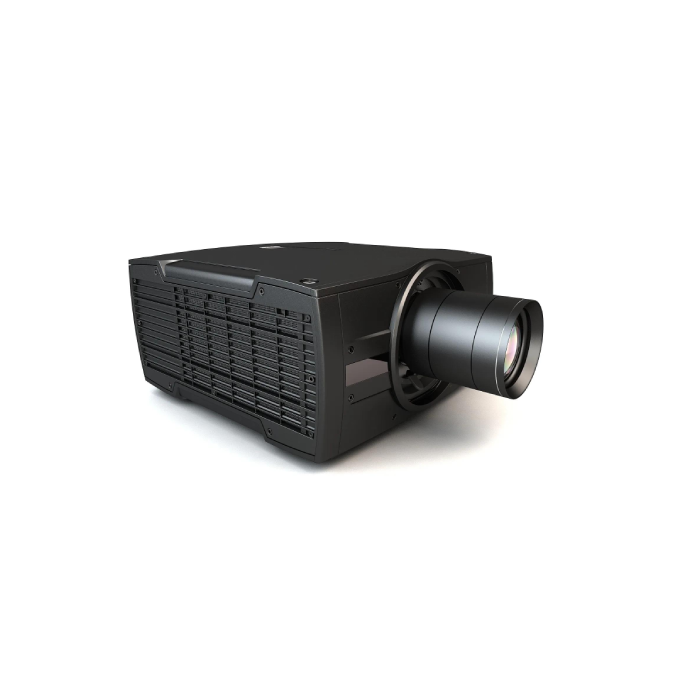

Image 2 of 2
Professional grade optics
By basing Bragi Cinemascope's optical engine on its bigger brother Balder Cinemascope's architecture, incorporating custom designed aspherical glass elements and enhanced low dispersion glass lenses, image quality is in a class of its own.
State of the art electronics
Thanks to our unique single step processing technology (SSPTM), Pulse electronics are designed to process 4K UHD, HDMITM 2.0a, HDCP 2.2 and HDR10 signals with extremely low latency. Bragi CinemaScope uses the very latest 0.9" DMD DLP chipset, to display flawless 5K UHD (5,120 × 2,160 px), 2.37:1 aspect ratio images on screen.
CinemaScope
Our unique aspect ratio detection system, automatically crops and scales content to fit the appropriate screen area, ranging from 1.78:1 to 2.39:1. Manual cropping is also available for custom configurations such as cinemascope subtitle support, where only the top black bar (letterboxing) is removed, preserving the subtitles at the foot of the image.
Colors
Combining HLD LED illumination with regular LED colors which appear more saturated, the human eye is tricked to interpret this as richer, brighter colors than they are physically measured. Bragi also includes a motorized DCI/P3 filter for improved HDR color accuracy.
Product Specifications
Projector type: Single chip DLP
Light source lifetime: Up to 50,000 hours *Brightness mode dependent
CLO (constant light output): Yes
Optical dowser: Yes
Technology: 0.9" DMD™
Integrated web server: Yes
Resolution: 5,120 x 2,160 (5K UHD)
Diagnostics: via Prospector web interface
Aspect ratio: 2.37:1 (CinemaScope)
Light source: Solid State RGB LED
Light output: Up to 2,200 ANSI Lumens
Contrast ratio: 1,800:1 Sequential, 450:1 ANSI
Brightness uniformity: >90%
Input resolutions: From VGA up to 4K UHD (3,840 x 2,160) @ 60Hz, or up to 2,560 x 1,600 @ 120Hz
Lens range:
(R9802232) - EN68 (0.30:1) - Periscope Lens (requires vertical installation)
(R9801832) - FLDX UST (0.41:1) - 90° Lens
(R9802244) - EN67 (0.65:1)
(R9802243) - EN66 (0.80 - 1.21:1)
(R9802003) - EN76 (0.95 - 1.30:1)
(R9802242) - EN63 (1.20 - 1.70:1) *
(R9802241) - EN61 (1.70 - 2.50:1) *
(R9801211) - EN44 (2.50 - 4.60:1)
*Standard Lens Option(s)
Latency: TBD
Optical lens shift: Up to 122% vertical lens shift & up to 40% horizontal lens shift (depending on lens selection)
Color correction: P7 RealColor™
Color gamut: REC.709, DCI (P3) via internal filter
Image processing: Embedded Warp & Blend Engine
WARP: 4-Corner Warp & Bow Correction via Warp Engine
Orientation: 360° Rotation
Network connection: 10/100 Ethernet via RJ45 connection
Operational humidity: 20 to 80% (relative humidity)
HDR: HDR10
3D: Active Stereoscopic 3D, Additional hardware required please contact an authorized Barco representative for details
Inputs:
1 x HDMITM 2.0 (HDCP 2.2)
1 x HDBaseT (HDCP 1.4 - 9Gbps only)
2 x Dual Link DVI-D
2 x Display Port (1.2)
12G-SDI 1 x RJ45 Ethernet
1 x RS232
1 x Remote Control (RC)
3 x USB (2 x Rear, 1 x Front)
DMX (1 x Input, 1 x Output)
Shipping Dimensions:
Excluding Lens
464 x 679 x 773 mm
18.27 x 26.7 x 30.4 in
Control:
IR, RS232, IP, 12v Trigger
Driver modules available for: Crestron, Control4, RTI & Savant NOTE: 12v Trigger(s) do not follow standard functionality and require an IP command to enable / disable them.
Download our integration guide for more information.
Shipping weight: TBC
Power requirements: 100 - 240V / 50 - 60Hz
Standard accessories: Power Cord, Remote Control
Certifications: CE, FCC Class A and cCSAus
Power consumption: 570 W - Max
Noise level (typical at 25°C/77°F): 30 - 33 dB(A) Max.
24/7 operation: This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.
Operating temperature:
10 to 45 °C at Sea Level
Optimal Set Point: 20 °C
Service required following 20,000 hours use
BTU per hour: 1,945 BTU/h - Max
Airflow requirements:
Air Inlet (from Rear w/Feet Down): Right Side
Exhaust (from Rear w/Feet Down): Rear Clearance Requirements:
Front: 1cm
Left: 1cm
Right: 25cm
Rear: 25cm
Top: 1cm
Exhaust airflow:
58 ft3/min @ 22.9 °C
99 m3/hour @ 22.9 °C
Dimensions (WxLxH):
Excluding Lens
450 x 482 x 255 mm
17.7 x 19 x 10 in.
Weight:
Excluding Lens
21.5 kg / 47.4 lbs
Warranty: Limited 3 years parts and labor, extendable up to 5 years
