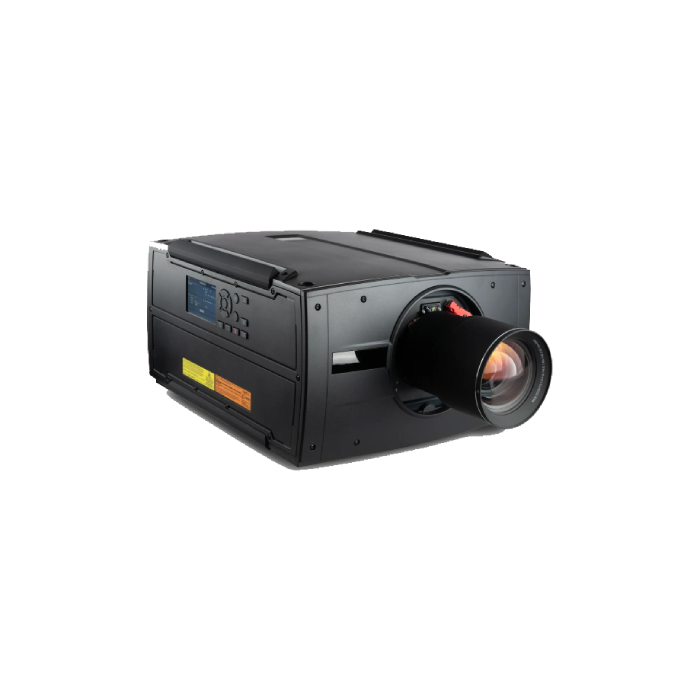

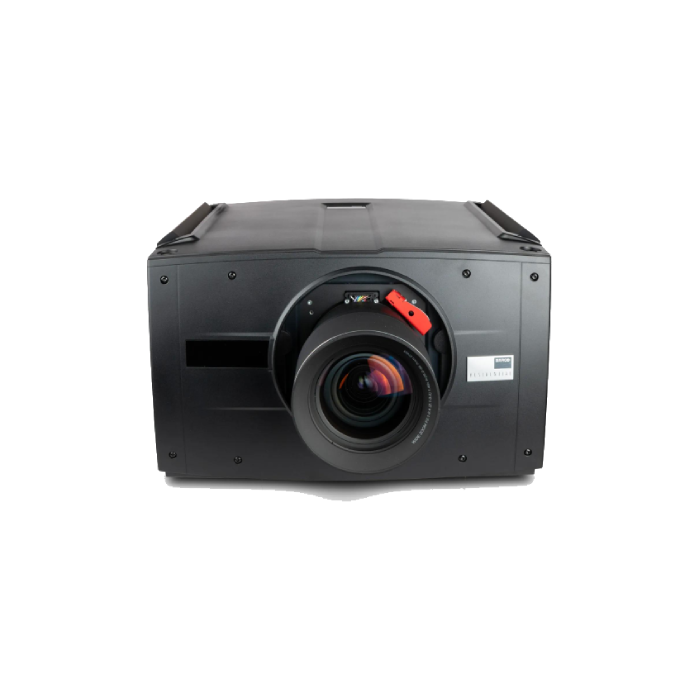

Barco Pulse Series Heimdall+ Cinemascope Projector

• Heimdall is Barco Residential’s first single chip Native 4K projector for exquisite resolution and detail. The RGB laser light engine supports the REC2020 color gamut, ensuring faithful reproduction of every color in every movie.

• The brand new RGB laser light engine gives Heimdall its incredible brightness with a long lifetime of 25,000 hours, even at full power. The solid state design has no moving parts for the absolute highest reliability.

• HDMI 2.1 is the latest standard for connectivity. This makes it an ideal match for our low latency design and is perfect for advanced gaming applications.

• DynaBlack provides frame by frame contrast enhancement which analyzes each frame of video. It then uses ultra-fast processing and laser pulsing to increase the overall dynamic range, making darker scene’s darker and brighter scenes brighter.

• Pulse is a hardware and software based platform that simplifies the signal path, allowing it to go from source to screen much faster and more efficiently. We use an advanced image processing technique to display the image on the screen without any artifacts.

• Single Step Processing (SSP™) provides geometry correction, warping, blending & more for ultimate installation flexibility.

• 7 different lenses are available, including the all-new EN83. This allows the Heimdall to be installed in virtually any room and in any location.

Product Specifications

Projector type: 4K 1-chip DLP RGB laser projector

Light source lifetime: 25,000 hours: 100% power/25°C/sea-level

Installation: Free Rotation

Technology: Single Chip 4K DMD, Solid State RGB Laser

Resolution: Up to 6,144 x 2,592 pixels

Aspect ratio: 2.37:1

Light source: Solid State RGB Laser

Light output: 6,000 ANSI lumens

Contrast ratio: 20,000:1 (with DynaBlack)

Input resolutions: Including and up to: 6,144 x 2,592 @ 60Hz

Lens range:

Note: All throw ratios adjusted for 0.98” DLP device

0.53:1 (EN67)*

0.70-1.06:1 (EN66)*

0.83-1.14:1 (EN76)*

1.06-1.50:1 (EN63)*

1.10-1.61:1 (EN83)

1.48-2.18:1 (EN61)*

2.19-4.05:1 (EN64)*

* Requires York lens adaptor (R9802623) for FLDX/FLD+ lenses

Optical lens shift: Varies depending on lens

Color correction: P7 RealColor™

Color gamut: REC709, DCI-P3, 98% REC2020

Image processing: Embedded warp & blend engine

Network connection: 10/100/1000 Mbit

Operational humidity: 20 - 80% RH

HDR: HDR10, HLG

3D: Active Stereoscopic 3D

Inputs: HDMI 2.1 (HDCP 2.3)

Control: IR, RJ45, Optional Cabled Remote

Storage temperature: -20 to 60 °C

Shipping dimensions (WxLxH): 560 x 765 x 410 mm / 22.1 x 30.1 x 16.1 in. (excluding lens)

Storage humidity: 10 - 90% RH

Power requirements: 7-3A, 100-240V~, 50/60Hz

Certifications: CE, FCC Class A and cCSAus

Power consumption: 610W typical, 750W maximum

Noise level (typical at 25°C/77°F): 30dB (29dB at 20°C/68°F)

Operating temperature: 10 - 40°C (sea level)

Operating humidity: 20 - 80% RH

BTU per hour: 2,081 BTU/h typical, 2,545 BTU/h maximum

Dimensions (WxLxH): 473 x 563 x 293 mm / 18.6 x 22.2 x 11.6 in (excluding lens and feet)

Weight: 31 kg/68 lbs

Warranty: Limited 3 years parts and labor, extendable up to 5 years

Safety requirements:

RG2*

*Only lenses specified in the installation manual are permitted for installation.

*This projector may become RG3 when no lens is installed.
