Single Step Processing SSP™
Pulse is a hardware and software based platform that simplifies the signal allowing it to transmit from source to screen much faster and more efficiently. We use an advanced image processing technique to display the image on the screen without any artefacts and with the lowest possible processing lag (<20ms with all image processing), this is made possible by our Single Step Processing (SSP™).
State of the art electronics
All new Pulse electronics have been designed to process 4K with HDMITM 2.0a and HDCP 2.2 and the optical engine utilises the very latest 0.9" DMD DLP chipset, delivering 5,120 x 2,160 pixels to screen.
Njord also features HDR, motorised lenses and Barco’s unique RealColor processing, enables simple and accurate calibration to any desired color standard or white point.
Building Blocks

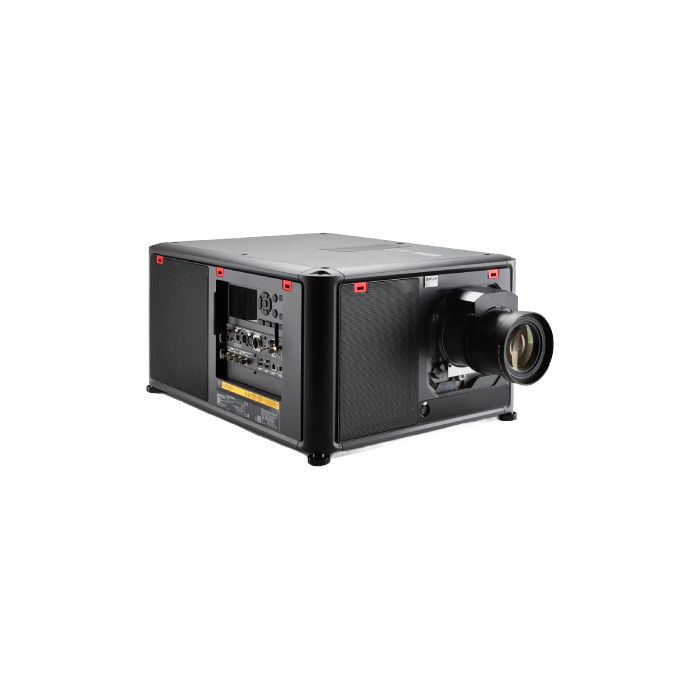

Njord offers 4K UHD resolution for superb image quality. Thanks to its modular design Njord is easy to service. Njord is the most compact rugged projector that offers up to 12,500 lumens light output currently available. One of its most striking features is that as standard it’s equipped with a fully featured-on-demand option for flexible light output between 4,000-12,500 lumens.
Laser Light Source
Outstanding image quality also requires an exceptional light source which is why we designed Njord with a brand new laser engine, significantly improving image uniformity (95%) over its predecessor. Njord is also equipped with custom selected lasers to deliver a DCI/P3 color gamut.
Product Specifications
Projector type: Three chip DLP
Light source lifetime: Up to 20,000
CLO (constant light output): Yes
Optical dowser: Yes
Technology: 3 x 0.90" DMD™ with sealed core
Integrated web server: Yes
Resolution: 3,840 x 2,160 (4K UHD)
Diagnostics: via Prospector web interface
Aspect ratio: 1.78:1 (16:9)
Light source: Laser phosphor
Light output: Up to 12,500 ANSI Lumens Dimable to 4,000 lumens
Contrast ratio: 20,000:1 (with DynaBlack enabled), 2,000:1 Sequential 600:1 ANSI
Brightness uniformity: >90%
Input resolutions:
HDMITM:
Up to 4,096 x 2,160 @ 24/25/30/50/60Hz
DisplayPort (Single Input):
Up to 4,096 x 2,160 @ 24/30/50/60Hz
via Optional Quad DP1.2 Input Card
DisplayPort (Layout Mode: 2 x 2) *:
Up to 1,920 x 1,080 @ 120Hz
Up to 2,048 x 1,080 @ 120Hz
DisplayPort (Layout Mode: 4 x 1) *:
Up to 960 x 2,160 @ 120Hz
* Specialist GFX cards may be required
Lens range:
(R9801661) - TLD+ (0.41:1) - 90 Degree Lens
(R9862001) - TLD+ (0.73 - 0.94:1) - 90 Degree Lens
(R9801414) - TLD+ (0.92 - 1.33:1)
(R9862005) - TLD+ (1.24 - 1.56:1)
(R9862010) - TLD+ (1.49 - 2.02:1) *
(R9862020) - TLD+ (2.01 - 2.76:1) *
(R9862030) - TLD+ (2.69 - 4.41:1) *
(R9862040) - TLD+ (4.37 - 7.35:1) *
(R9829997) - TLD+ (6.95 - 10.83:1)
* Standard Lens Option(s)
Latency: TBD
Optical lens shift: Up to 73% vertical lens shift & up to 28% horizontal lens shift (depending on lens selection)
Color correction: P7 RealColor™
Color gamut: Up to DCI (P3)
Image processing: Embedded Warp & Blend Engine
WARP: 4-Corner Warp & Bow Correction via Warp Engine
Orientation: 360° Rotation
Network connection: 10/100 Ethernet via RJ45 connection
Operational humidity: 0 to 80% (relative humidity)
HDR: HDR10
3D: Active Stereoscopic 3D Additional hardware required please contact an authorized Barco representative for details
Inputs: 1 x HDMITM 2.0 (HDCP 2.2) 2 x HDBaseT (HDCP 1.4 - 9Gbps only) 1 x Display Port 1.2 Quad 3G / 12G SDI / BarcoLink 1 x RJ45 Ethernet 1 x RS232 1 x USB 2 x DMX (1 x Input / 1 x Output) 1 x XLR for Wired Remote 2 x 3D Sync (1 x Input / 1 x Output) Optional Upgrade: Quad DP1.2
Shipping Dimensions:
Including Pallet - Excluding Lens (Packaged Separately)
850 x 665 x 613 mm
33.46 x 26.18 x 24.13 in.
Control: IR, RS232, IP, 12v Trigger, Driver modules available for: Crestron, Control4, RTI & Savant WiFi (Optional), XLR Wired Remote, GSM (Optional)
Shipping weight: TBD
Power requirements: 110 - 130V / 200 - 240V / 50 - 60Hz
Standard accessories: Power Card / Remote control
Certifications: CE, FCC Class A and cCSAus
Power consumption: 1,723 W Max
Noise level (typical at 25°C/77°F): 43 dB(A)
Operating temperature:
0 to 40 °C at Sea Level
Optimal Set Point: 20 °C
Firmware upgradable
BTU per hour:
Max. 5,876 BTU/h @ 200 - 240V
Max. 4,811 BTU/h @ 110 - 130V
Airflow requirements:
Air Inlet (from Rear w/Feet Down): Front / Top / Right
Exhaust (from Rear w/Feet Down): Rear Clearance Requirements:
Front: 40cm
Left: 1cm
Right: 40cm
Rear: 40cm
Top: 40cm
Exhaust airflow:
152 ft3/min @ 25 °C
258 m3/hour @ 25 °C
Dimensions (WxLxH):
Excluding Lens
540 x 725 x 355 mm
21.26 x 28.54 x 14 in.
Weight:
Excluding Lens
48kg / 105bs
Warranty: Limited 3 years parts and labor, extendable up to 5 years
Safety requirements: This projector may become Risk Group 3 (RG3) when an interchangeable lens with throw ratio greater than 2.3 is installed. Refer to the installation manual for further information.
