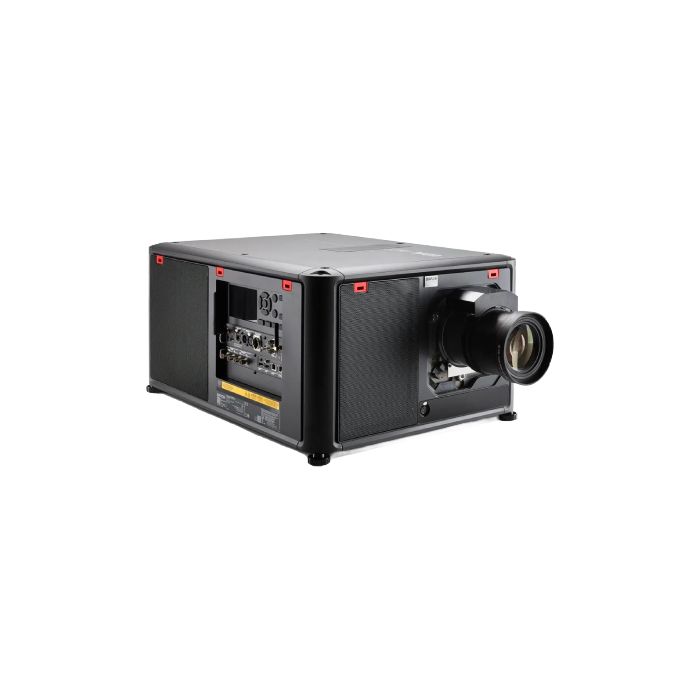

Barco Pulse Series Njord Cinemascope Projector

$111,155.00

Njord Cinemascope inherits everything from Njord except the aspect ratio, Njord Cinemascope's high-capacity 2.37:1 aspect DLP engine. Its exceptional design allows a cinemascope film to be shown without requiring an anamorphic lens. The light source and optical engine are completely redesigned, made smaller, more efficient, and most importantly optimized for perfect cinematic colors compared to the older model Wodan.

Our Njord CinemaScope features a pleasing and uniform image with the power light up large cinemascope screens, whilst delivering an unbelievably detailed image with spectacular color fidelity for an unmatched experience that will delight even the most discerning clients.

To order or get more information, give us a call at (602) 796-4127

Quantity:

To order or get more information, give us a call at (602) 796-4127

Single Step Processing SSP™

Pulse is a hardware and software based platform that simplifies the signal allowing it to transmit from source to screen much faster and more efficiently. We use an advanced image processing technique to display the image on the screen without any artefacts and with the lowest possible processing lag (<20ms with all image processing), this is made possible by our Single Step Processing (SSP™).

State of the art electronics

All new Pulse electronics have been designed to process 4K with HDMITM 2.0a and HDCP 2.2 and the optical engine utilises the very latest 0.9" DMD DLP chipset, delivering 5,120 x 2,160 pixels to screen.

Njord CS also features HDR, motorised lenses and Barco’s unique RealColor processing, enables simple and accurate calibration to any desired color standard or white point.

Building Blocks

Njord Cinemascope offers 5K UHD resolution (5,120 x 2,160) for superb image quality. Thanks to its modular design of only five building blocks, Njord CS is easy to service. Njord CS is the most compact and rugged cinemascope projector offering 9,000 lumens light output currently available.

Laser Light Source

Outstanding image quality also requires an exceptional light source which is why we designed Njord CS with a brand new laser engine, significantly improving image uniformity (95%) over its predecessor. Njord CS uses custom selected lasers to secure that we can deliver DCI/P3 color gamut.

Product Specifications

Projector type: Three chip DLP

Light source lifetime: Up to 20,000

CLO (constant light output): Yes

Optical dowser: Yes

Technology: 3 x 0.90" DMD™ with sealed core

Integrated web server: Yes

Resolution: 5120 x 2,160 (5K UHD)

Diagnostics: via Prospector web interface

Aspect ratio: 2.37:1 (CinemaScope)

Light source: Laser phosphor

Light output: Up to 9,000 ANSI Lumens Dimable to 4,000 lumens NOTE: Up to 6,940 ANSI Lumens @ 110v

Contrast ratio: 20,000:1 (with DynaBlack enabled), 2,000:1 Sequential 600:1 ANSI

Brightness uniformity: >90%

Input resolutions:

HDMITM:
Up to 4,096 x 2,160 @ 24/25/30/50/60Hz

DisplayPort (Single Input):
Up to 4,096 x 2,160 @ 24/30/50/60Hz

via Optional Quad DP1.2 Input Card

DisplayPort (Layout Mode: 2 x 2) *:
Up to 1,920 x 1,080 @ 120Hz
Up to 2,048 x 1,080 @ 120Hz

DisplayPort (Layout Mode: 4 x 1) *:
Up to 960 x 2,160 @ 120Hz

* Specialist GFX cards may be required

Lens range:

(R9801661) - TLD+ (0.41:1) - 90 Degree Lens
(R9862001) - TLD+ (0.73 - 0.94:1) - 90 Degree Lens
(R9801414) - TLD+ (0.92 - 1.33:1)
(R9862005) - TLD+ (1.24 - 1.56:1)
(R9862010) - TLD+ (1.49 - 2.02:1) *
(R9862020) - TLD+ (2.01 - 2.76:1) *
(R9862030) - TLD+ (2.69 - 4.41:1) *
(R9862040) - TLD+ (4.37 - 7.35:1) *
(R9829997) - TLD+ (6.95 - 10.83:1)
* Standard Lens Option(s)

Latency: TBD

Optical lens shift: Up to 97% shift & up to 28% horizontal lens shift (depending on lens selection)

Color correction: P7 RealColor™

Color gamut: Up to DCI (P3)

Image processing: Embedded Warp & Blend Engine

WARP: 4-Corner Warp & Bow Correction via Warp Engine

Orientation: 360° Rotation

Network connection: 10/100 Ethernet via RJ45 connection

Operational humidity: 0 to 80% (relative humidity)

HDR: HDR10

3D: Active Stereoscopic 3D Additional hardware required please contact an authorized Barco representative for details

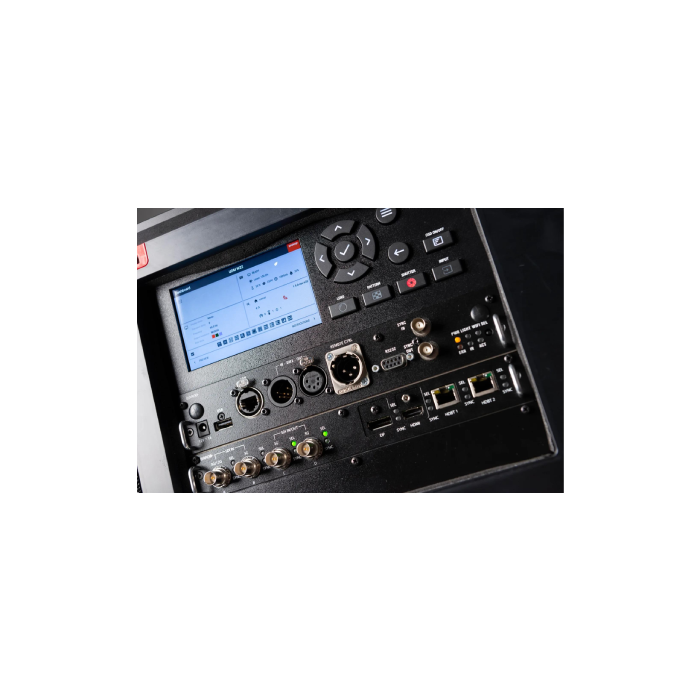

Inputs: 1 x HDMITM 2.0 (HDCP 2.2) 2 x HDBaseT (HDCP 1.4 - 9Gbps only) 1 x Display Port 1.2 Quad 3G / 12G SDI / BarcoLink 1 x RJ45 Ethernet 1 x RS232 1 x USB 2 x DMX (1 x Input / 1 x Output) 1 x XLR for Wired Remote 2 x 3D Sync (1 x Input / 1 x Output) Optional Upgrade: Quad DP1.2

Control: IR, RS232, IP, 12v Trigger, Driver modules available for: Crestron, Control4, RTI & Savant WiFi (Optional), XLR Wired Remote, GSM (Optional)

Shipping dimensions (WxLxH):

Including Pallet - Excluding Lens (Packaged Separately)
850 x 665 x 613 mm
33.46 x 26.18 x 24.13 in.

Shipping weight: TBD

Power requirements: 110 - 130V / 200 - 240V / 50 - 60Hz

Standard accessories: Power Card / Remote control

Certifications: CE, FCC Class A and cCSAus

Power consumption: 1,723 W Max

Noise level (typical at 25°C/77°F): 43 dB(A)

Operating temperature:

0 to 40 °C at Sea Level

Optimal Set Point: 20 °C

Firmware upgradable

BTU per hour:

Max. 5,876 BTU/h @ 200 - 240V
Max. 4,811 BTU/h @ 110 - 130V

Airflow requirements:

Air Inlet (from Rear w/Feet Down): Front / Top / Right
Exhaust (from Rear w/Feet Down): Rear Clearance Requirements:
Front: 40cm
Left: 1cm
Right: 40cm
Rear: 40cm
Top: 40cm

Exhaust airflow: 152 ft3/min @ 25 °C

Dimensions (WxLxH):

Excluding Lens
850 x 665 x 613 mm
33.46 x 26.18 x 24.13 in.

Weight:

Excluding Lens
48kg / 105bs

Warranty:

Limited 3 years parts and labor
Extendable up to 5 years

Safety requirements: This projector may become Risk Group 3 (RG3) when an interchangeable lens with throw ratio greater than 2.3 is installed. Refer to the installation manual for further information.
