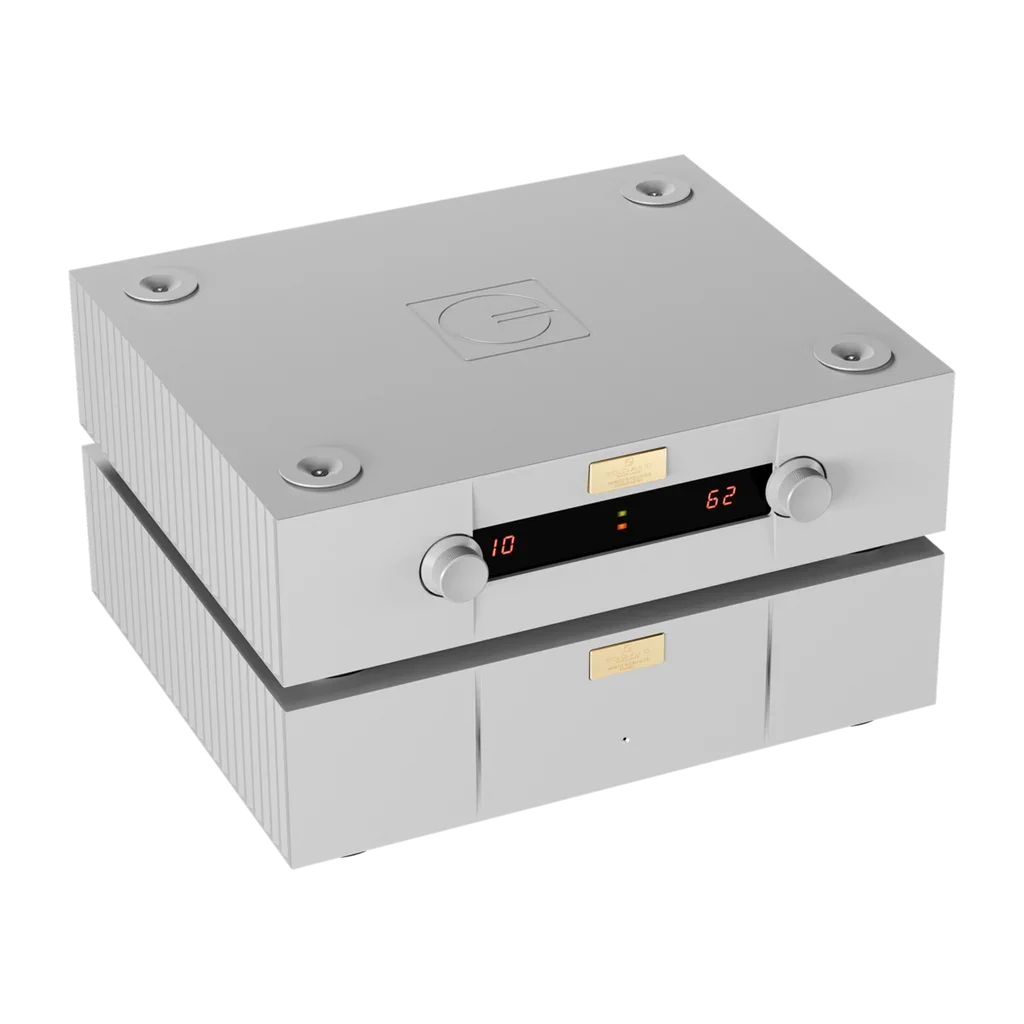

Goldmund Mimesis Reference Analogue Preamplifier

$159,000.00

Driven by Class A Output Stage Drivers, this preamplifier is a maestro of minimalism, employed to guarantee the lowest Total Harmonic Distortion (THD) and Intermodulation Distortion (IMD). The result? A harmonious soundscape that resonates with authenticity and captures the very essence of the music.

The Mimesis Reference defies convention with its mastery over Ultra-Low Transient Intermodulation Distortion (TIM). Every delicate transition, every crescendo, is imbued with a purity that embraces the essence of true fidelity.

To order or get more information, give us a call at (602) 796-4127

Color:

Driven by Class A Output Stage Drivers, this preamplifier is a maestro of minimalism, employed to guarantee the lowest Total Harmonic Distortion (THD) and Intermodulation Distortion (IMD). The result? A harmonious soundscape that resonates with authenticity and captures the very essence of the music.

The Mimesis Reference defies convention with its mastery over Ultra-Low Transient Intermodulation Distortion (TIM). Every delicate transition, every crescendo, is imbued with a purity that embraces the essence of true fidelity.

To order or get more information, give us a call at (602) 796-4127

Power, Redefined

A complete redesign of the power supply has been implemented, utilizing separate analogue and digital circuits. Custom audio-grade transformers are employed to drive each section of the preamplifier, ensuring optimal performance. Each side (left & right) of the preamplifier has its dedicated power supply, enhancing channel separation.

Mastery in Dissipation

An additional separate power supply is dedicated to driving the digital section of the preamplifier. The heat sink has been crafted in-house to maximize the utilization of available surface area and efficiently dissipate heat from the power supplies. The power supply units feature customized Goldmund brand components, including oxygen-free gold, guaranteeing an extraordinarily stable sonic power supply for the audio drivers.

Crafted to Perfection

Heat dissipation has been enhanced with a meticulously crafted heat sink, created using CNC machining techniques, is implemented. Extensive work has been conducted on the audio board of the preamplifier section. A new shielding design, which also serves as a heat sink, has been implemented. Each Low Noise Op-amp on the audio board is equipped with a custom heat sink. The heat sink is precision machined from a single piece of aluminium, ensuring optimal cooling efficiency by establishing direct mechanical contact between each Op-amp and the dissipator. This configuration provides the best available cooling capability for the audio circuitry.

Specifications

Type: Reference Analog Stereo Preamplifier

Output Stage: Pure Class A

Architecture: Fully Dual-Mono

Power Supply: Separate external power supply

Nominal Output Level: 1.55 V RMS

Maximum Output (Balanced): 9.6 V RMS

Maximum Output (Unbalanced): 4.8 V RMS

Output Impedance: 50 Ω

Input Impedance: 39 kΩ

Nominal Input Sensitivity: 100 mV

Maximum Input (Balanced): 9.6 V RMS

Maximum Input (Unbalanced): 4.8 V RMS

Input Level Trim: ±12 dB independently adjustable for each of the 7 inputs

Performance Specifications

Frequency Response±0 dB: 20 Hz – 20 kHz±3 dB: 0.2 Hz – 1.2 MHz

Group Delay<300 ns (DC–200 kHz)

Slew Rate: 2,500 V/µsRise Time<400 ns

THD (Balanced In → Balanced Out): 0.0001%

THD (Unbalanced In → Unbalanced Out): 0.0002%

IMD (Balanced): 0.0001%

IMD (Unbalanced): 0.0002%

Signal-to-Noise Ratio: >126 dB

A-Weighted SNR: >136 dB

Channel Separation: >105 dB (20 Hz–20 kHz)

Inputs & Outputs

Analog Inputs

  • 7 × Balanced XLR stereo inputs

  • 3 × Unbalanced RCA stereo inputs (including tape input)

Analog Outputs

  • 3 × Balanced XLR stereo outputs

  • 3 × Unbalanced RCA stereo outputs (including tape output)

Control & Connectivity

  • RS-232 control

  • Ground lift / signal grounding post

  • Separate earth and signal ground connections

  • Link Float grounding system

  • Automatic muting during AC interruption

  • Automatic tape-loop protection

Power

Nominal AC Voltage: 115 V or 230 V

Input Voltage Range: ±15%

Maximum Power Consumption: 70 W

Physical Specifications

Main Preamplifier Chassis

Dimensions (W × H × D): 44 × 16 × 40.6 cm (17.3 × 6.3 × 16.0 in)

Weight: 20 kg (44 lb)

External Power Supply

Dimensions (W × H × D): 44 × 16 × 39 cm (17.3 × 6.3 × 15.4 in)

Weight: 25 kg (55 lb)
