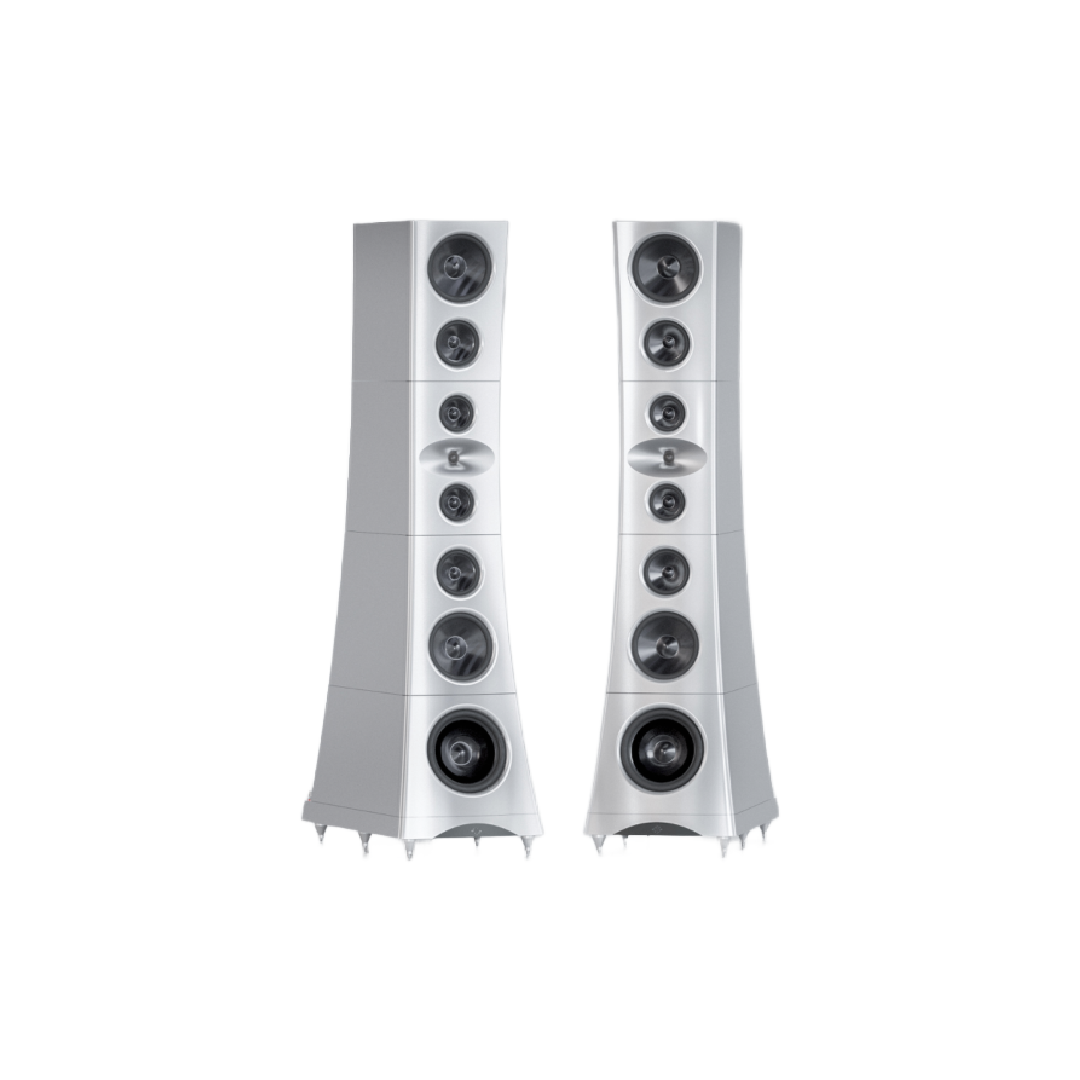

YG Acoustics TITAN

from $880,000.00

YG’s new Ultimate range embodies this relentless spirit. After three years of dedicated development, YG proudly presents Titan, the most ambitious loudspeaker they have ever created. Titan represents a collective vision, designed not just to demonstrate new innovations but to connect listeners deeply and intimately with their music, surpassing expectations and creating experiences filled with genuine emotion.

Standing over two meters tall, each Titan speaker houses a precisely arranged seven-driver symmetrical array supported by a custom-designed sub-bass driver.

The revolutionary lattice tweeter is supported by proprietary YG aluminum cone 15cm midrange, 18cm midbass and 26cm bass drivers, each as a pair above and below the tweeter. Simulation and extensive listening showed the extraordinary advantages of a carefully designed symmetrical arrangement. This array is supported by a custom YG aluminum cone 32cm sub-bass driver, with a massive magnet structure. Every driver is meticulously phase-aligned with its neighbors across an extensive frequency range, ensuring a true point-source listening experience.

  • Titan Passive: A fully passive five-way, eight-driver configuration with an external crossover, accommodating from one to five amplification channels per tower.

  • Titan Active Sub:Combines a fully passive four-way system with a dedicated external 1 kW amplifier for sub-bass frequencies, carefully phase- and time-aligned to blend seamlessly with the passive drivers, supporting from one to four amplification channels per tower.

  • Titan Live: A fully integrated audio solution, with each channel featuring an external audiophile-grade amplifier and advanced DSP crossover, all connected via glass optical fibre to the Live Controller, providing Roon-Ready streaming alongside comprehensive digital and analogue connectivity.

To order or get more information, give us a call at (602) 796-4127

Versions:

YG’s new Ultimate range embodies this relentless spirit. After three years of dedicated development, YG proudly presents Titan, the most ambitious loudspeaker they have ever created. Titan represents a collective vision, designed not just to demonstrate new innovations but to connect listeners deeply and intimately with their music, surpassing expectations and creating experiences filled with genuine emotion.

Standing over two meters tall, each Titan speaker houses a precisely arranged seven-driver symmetrical array supported by a custom-designed sub-bass driver.

The revolutionary lattice tweeter is supported by proprietary YG aluminum cone 15cm midrange, 18cm midbass and 26cm bass drivers, each as a pair above and below the tweeter. Simulation and extensive listening showed the extraordinary advantages of a carefully designed symmetrical arrangement. This array is supported by a custom YG aluminum cone 32cm sub-bass driver, with a massive magnet structure. Every driver is meticulously phase-aligned with its neighbors across an extensive frequency range, ensuring a true point-source listening experience.

  • Titan Passive: A fully passive five-way, eight-driver configuration with an external crossover, accommodating from one to five amplification channels per tower.

  • Titan Active Sub:Combines a fully passive four-way system with a dedicated external 1 kW amplifier for sub-bass frequencies, carefully phase- and time-aligned to blend seamlessly with the passive drivers, supporting from one to four amplification channels per tower.

  • Titan Live: A fully integrated audio solution, with each channel featuring an external audiophile-grade amplifier and advanced DSP crossover, all connected via glass optical fibre to the Live Controller, providing Roon-Ready streaming alongside comprehensive digital and analogue connectivity.

To order or get more information, give us a call at (602) 796-4127

Product Specifications

SPEAKER TYPE

  • 5-way floor-standing loudspeaker

  • Available in passive, Active Sub and Live versions

  • Triple layer, aerospace aluminum cabinet with constrained layer damping

DRIVERS

  • Lattice hybrid tweeter with advanced airframe

  • Dual 15 cm (6”) proprietary YG aluminum cone drivers, advanced neodymium motor magnets, exceptional set matching

  • Dual 18.5 cm (7.25”) proprietary YG aluminum cone drivers, advanced neodymium motor magnets, exceptional set matching

  • Dual 26 cm (10.25”) proprietary YG aluminum cone drivers, ultra-high field strength motor, exceptional set matching

  • 32cm (12.5”) proprietary YG aluminum cone driver, ultra-high field strength motor, exceptional set matching

CONFIGURATIONS

  • Passive: External crossover with Ultracoherent circuits at 35 Hz, 90 Hz, 360 Hz and 1.85 kHz

  • Active Bass: External crossover with Ultracoherent circuits at 90 Hz, 360 Hz and 1.85 kHz. 1kW audiophile bass amplifier with DSP tuned crossver for 32cm driver, supporting room correction

  • Live: External amplifier with 8 x 700W audiophile amplifiers per tower, with optimized DSP crossover, linked by glass optical fibres to Live Controller with ROON Ready streaming, analogue and digital inputs and high quality phono stage

PASSIVE CROSSOVER

  • Custom components unique to each pair, individually optimized for frequency response, phase alignment, phase slope and transient response

  • Custom capacitors, including pure metal foil models and special copper alloy foil models

  • Exceptional components such as foil resistors, resonance-damped inductors, silver-gold alloy capacitors and OFC Litz inductors

  • Custom, anti-resonance PCB with low dielectric constant and dissipation factor, with optimized traces

RESPONSE

  • Usable output extends from below 20 Hz to 40 kHz

  • Exceptionally low distortion throughout range

  • Exceptional pair matching

SENSITIVITY

  • 88 dB

IMPEDANCE

  • 4 Ohms average

  • 2.4 Ohms minimum

DIMENSIONS

  • 215 × 54 × 108 cm [84.5 × 21.5 × 42.5”] H × W × D

WEIGHT

  • 455 kg [1000 lbs] per tower unpacked
