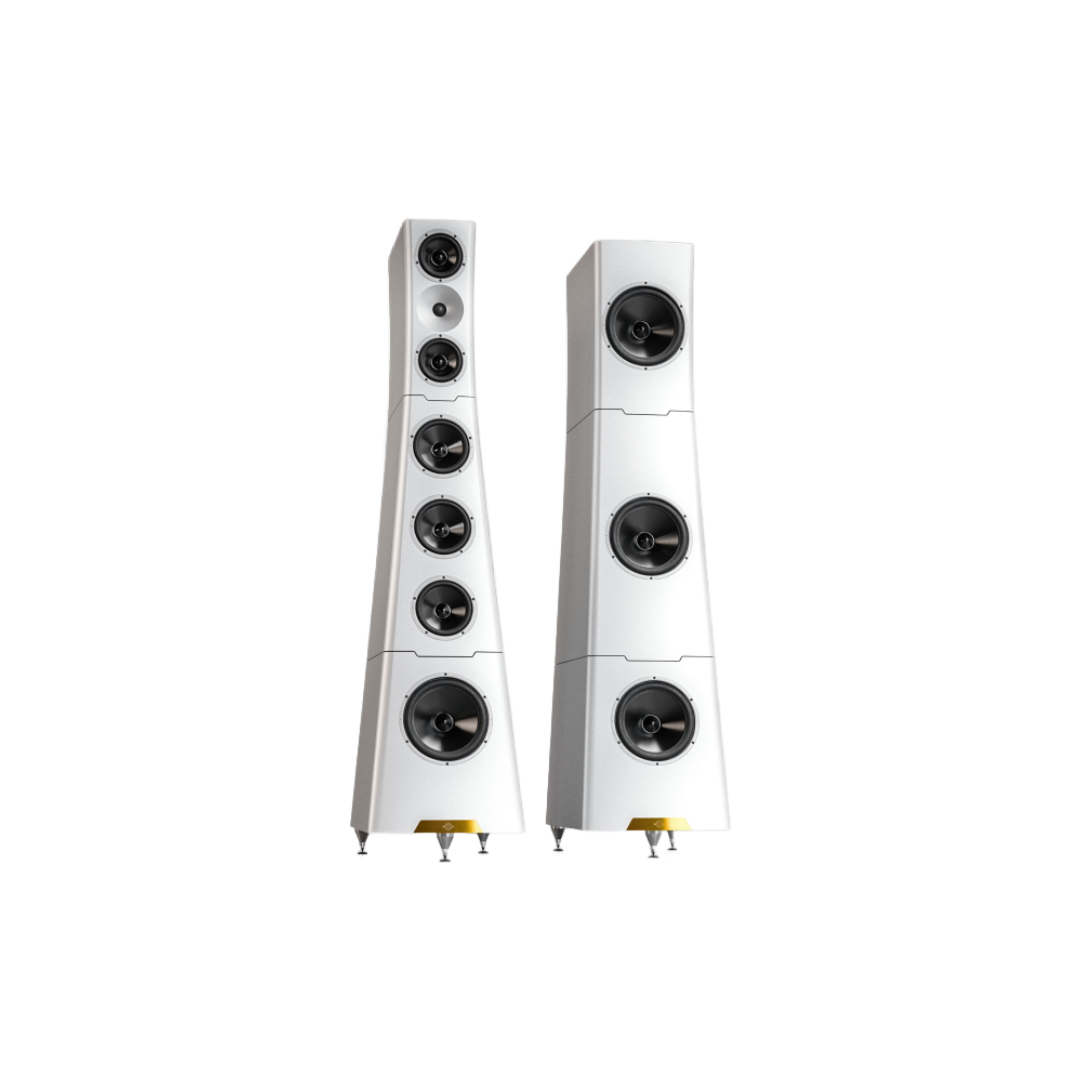

YG Acoustics XV 3 SIGNATURE

$524,000.00

XV 3 Signature is a limited edition of just eight pairs pushing that performance yet further, demonstrating an exercise in obsessive perfection. Painstakingly built and tuned at our R&D facility, XV 3 Signature is so extreme that it was never intended to enter production, and its origins help explain its truly exceptional nature.

XV 3 is the flagship of the Reference range. It is an extreme, four-tower loudspeaker system which will redefine what you think is possible: the finest micro-details placed exactly in a broad and deep holographic audio space; unmatched scale and faultless timing.

To order or get more information, give us a call at (602) 796-4127

XV 3 Signature is a limited edition of just eight pairs pushing that performance yet further, demonstrating an exercise in obsessive perfection. Painstakingly built and tuned at our R&D facility, XV 3 Signature is so extreme that it was never intended to enter production, and its origins help explain its truly exceptional nature.

XV 3 is the flagship of the Reference range. It is an extreme, four-tower loudspeaker system which will redefine what you think is possible: the finest micro-details placed exactly in a broad and deep holographic audio space; unmatched scale and faultless timing.

To order or get more information, give us a call at (602) 796-4127

Product Specifications

SPEAKER TYPE

  • 4-way passive floor-standing loudspeaker. Four tower, three layer aerospace aluminum cabinet with constrained layer damping.

DRIVERS

  • 26 mm (1”) proprietary YG Lattice hybrid tweeter with advanced airframe

  • Dual 15 cm (6”) proprietary YG aluminum cone midrange drivers with advanced neodymium motor magnets, exceptional set matching

  • Triple 18.5 cm (7.25”) proprietary YG aluminum cone midbass drivers with advanced neodymium motor magnets, exceptional set matching

  • Quad 26 cm (10.25”) proprietary YG aluminum cone bass drivers with ultra-high field strength motors, exceptional set matching

CROSSOVER

  • Ultracoherent crossovers at 90 Hz, 360 Hz and 1.85 kHz

  • Individually optimized crossovers using custom component values unique to each pair

  • Exceptional phase alignment: ±3° relative phase over range where driver relative output is within 20 dB

  • Optimized for exceptional phase alignment, phase slope and transient response

  • Custom capacitors including pure copper alloy foil and pure aluminum alloy foil models

  • Advanced resistors including multiple foil resistor

  • Advanced resonance-damped inductors

  • Computationally optimised layouts to minimise component interactions

RESPONSE

  • Usable output extends from below 20 Hz to 40 kHz

  • Exceptionally low distortion throughout range

  • Exceptionally close pair matching

SENSITIVITY

  • 88 dB

IMPEDANCE

  • 4 Ohms average

  • 3 Ohms minimum

DIMENSIONS

  • Four towers

  • 179 × 43 × 72 cm (H × W × D)

  • 70 × 17 × 28” (H × W × D)

WEIGHT

  • 225 kg (495 lbs) per main tower unpacked

  • 188 kg (414 lbs) per bass tower unpacked

FINISHES

  • A wide range of custom anodized finishes available, with finishes selectable separately for each panel and ring
