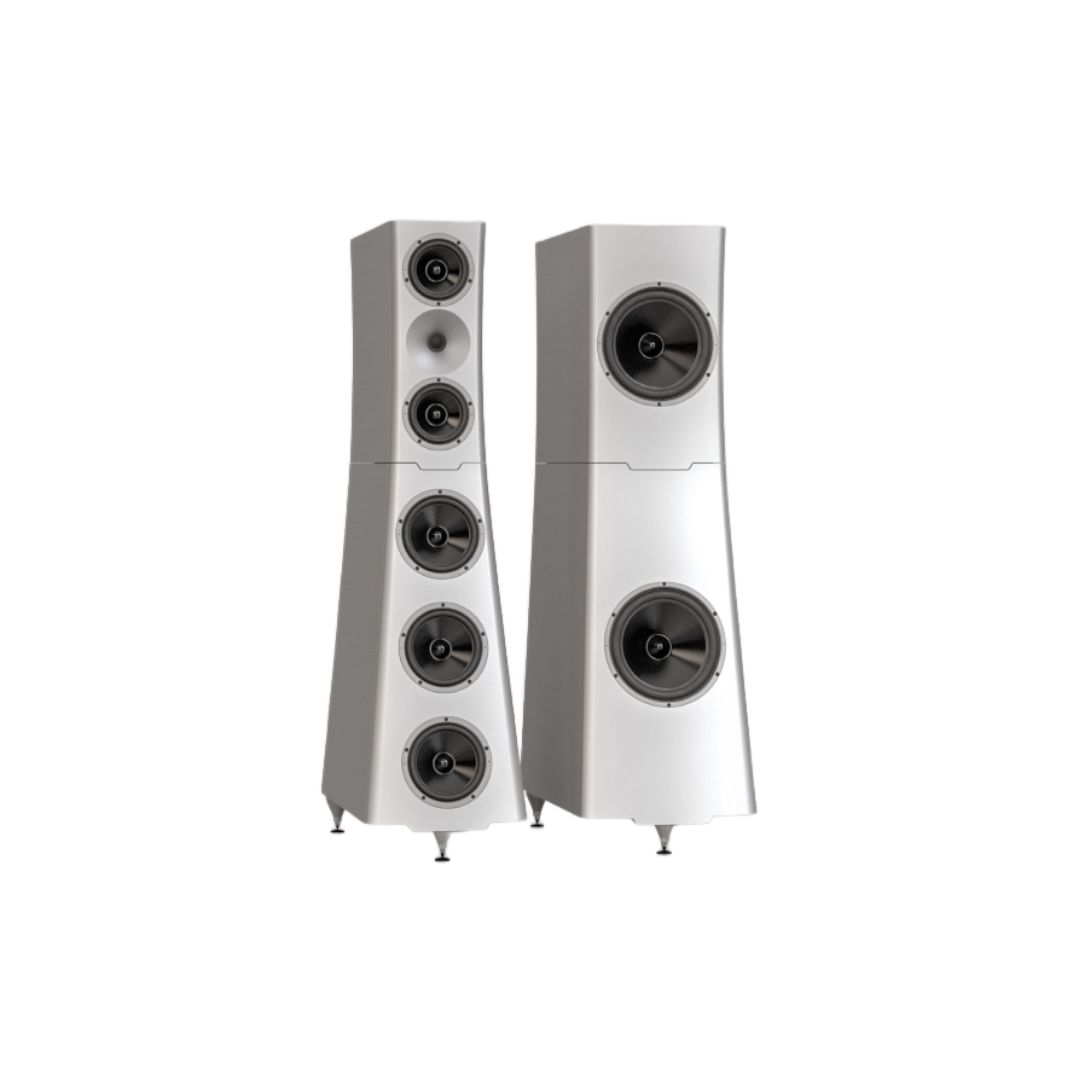

YG Acoustics XV STUDIO 3

$314,000.00

XV Studio 3 is an extreme, four-tower loudspeaker system which will redefine what you think is possible: the finest microdetails placed exactly in a broad and deep holographic audio space; unmatched scale and faultless timing. XV Studio 3 is an entirely new sonic benchmark. With the revolutionary Lattice tweeter, seven BilletCore drivers and YG’s most extreme implementation of the ultra coherent crossover, it is an acoustic, scientific and engineering marvel.

The dual 15 cm (6”) midrange, triple 18.5 cm (7.25”) midbass and dual 26 cm (10.25”) bass drivers use advanced motors and YG proprietary aluminum cones, delivering industry-leading performance.

To order or get more information, give us a call at (602) 796-4127

XV Studio 3 is an extreme, four-tower loudspeaker system which will redefine what you think is possible: the finest microdetails placed exactly in a broad and deep holographic audio space; unmatched scale and faultless timing. XV Studio 3 is an entirely new sonic benchmark. With the revolutionary Lattice tweeter, seven BilletCore drivers and YG’s most extreme implementation of the ultra coherent crossover, it is an acoustic, scientific and engineering marvel.

The dual 15 cm (6”) midrange, triple 18.5 cm (7.25”) midbass and dual 26 cm (10.25”) bass drivers use advanced motors and YG proprietary aluminum cones, delivering industry-leading performance.

To order or get more information, give us a call at (602) 796-4127

Product Specifications

SPEAKER TYPE

  • 4-way passive floor-standing loudspeaker

  • Four tower, three-layer, aerospace aluminum cabinet with constrained layer damping

DRIVERS

  • 26 mm (1”) proprietary YG Lattice hybrid tweeter with advanced airframe

  • Dual 15 cm (6”) proprietary YG aluminum cone midrange drivers with advanced neodymium motor magnets

  • Triple 18.5 cm (7.25”) proprietary YG aluminum cone midbass drivers with advanced neodymium motor magnets

  • Dual 26 cm (10.25”) proprietary YG aluminum cone bass drivers with ultra-high field strength motors

CROSSOVER

  • Ultracoherent crossovers at 90 Hz, 360 Hz and 1.85 kHz

  • Exceptional phase alignment: ±5° relative phase over range where driver relative output is within 20 dB

  • Optimized for phase alignment, phase slope and transient response Custom capacitors including pure metal foil models

  • Advanced resistors including multiple foil resistor

  • Advanced resonance-damped inductors

  • Computationally optimized layouts to minimize component interactions

RESPONSE

  • Usable output extends from below 20 Hz to 40 kHz

  • Exceptionally low distortion throughout range

  • Excellent pair matching

SENSITIVITY

  • 88 dB

IMPEDANCE

  • 4 Ohms average

  • 3 Ohms minimum

DIMENSIONS

  • Main towers:

  • 129 × 33 × 63 cm (H × W × D)

  • 51 × 13 × 25” (H × W × D)

  • Bass towers:

  • 129 × 33 × 63 cm (H × W × D)

  • 51 × 13 × 25” (H × W × D)

WEIGHT

  • 145 kg (320 lbs) per main tower unpacked

  • 135 kg (297 lbs) per bass tower unpacked

FINISHES

  • Standard finishes are silver and black

  • Please contact your dealer for other finish options
