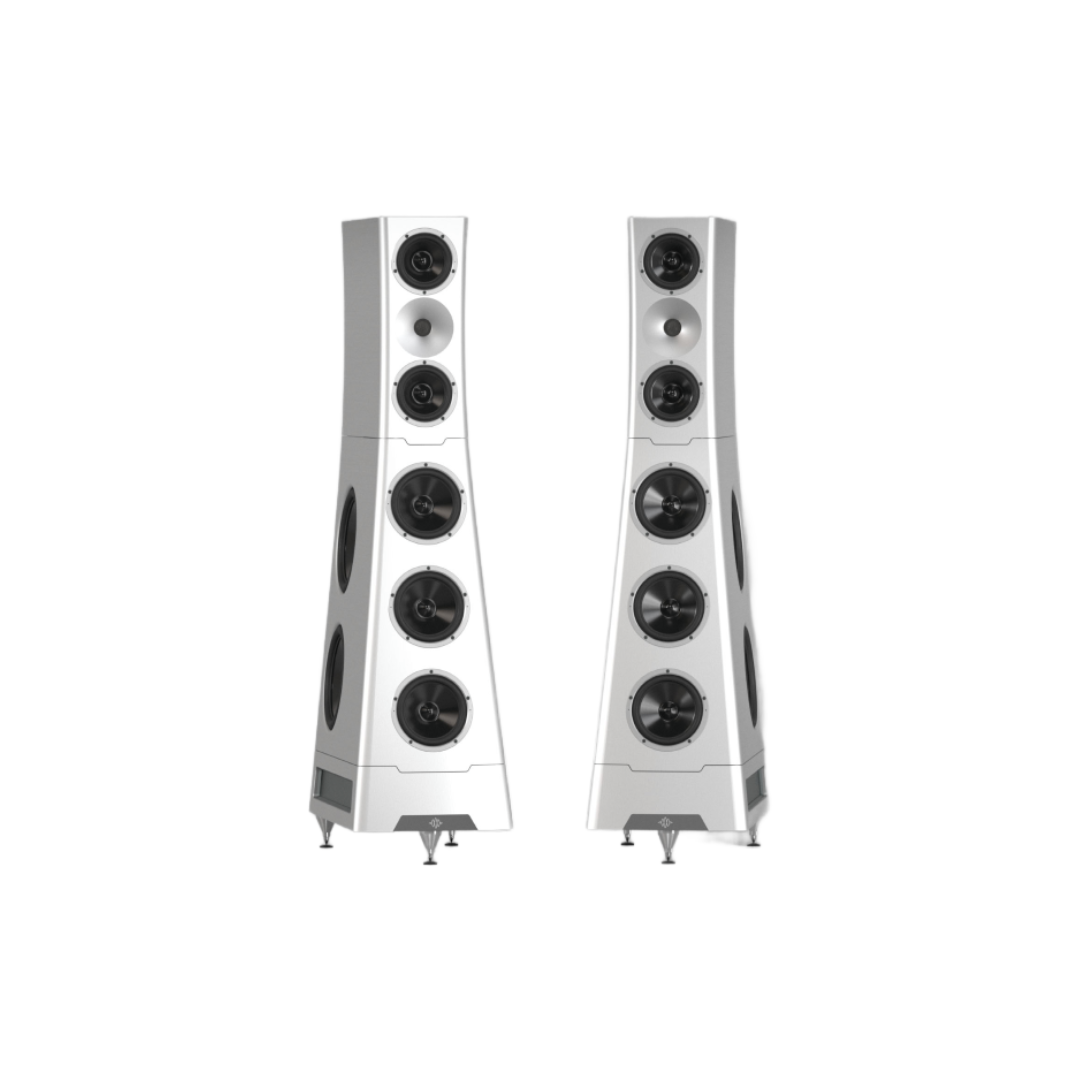

YG Acoustics XX 3

$250,000.00

Celebrating the twentieth anniversary of YG Acoustics, XX 3 is a unique product: an ultimate performance loudspeaker that will redefine what you think is possible. Benefitting from the latest in driver and crossover technology, it offers the highest possible sound quality from a single tower design. It is an acoustic, scientific and engineering marvel.

The XX 3 delivers incredible accuracy and realism from the deepest bass to the highest treble: the finest micro-details placed exactly in a broad and deep holographic audio space; unmatched scale and faultless timing. Each channel has eight industry-leading YG proprietary drivers, mounted in a massive, inert, multi-layer cabinet, all driven by our most extreme Ultracoherent crossover.

To order or get more information, give us a call at (602) 796-4127

Celebrating the twentieth anniversary of YG Acoustics, XX 3 is a unique product: an ultimate performance loudspeaker that will redefine what you think is possible. Benefitting from the latest in driver and crossover technology, it offers the highest possible sound quality from a single tower design. It is an acoustic, scientific and engineering marvel.

The XX 3 delivers incredible accuracy and realism from the deepest bass to the highest treble: the finest micro-details placed exactly in a broad and deep holographic audio space; unmatched scale and faultless timing. Each channel has eight industry-leading YG proprietary drivers, mounted in a massive, inert, multi-layer cabinet, all driven by our most extreme Ultracoherent crossover.

To order or get more information, give us a call at (602) 796-4127

Product Specifications

SPEAKER TYPE

  • 4-way passive floor-standing loudspeaker

  • Three-layer and five-layer, aerospace aluminum cabinet with constrained layer damping

DRIVERS

  • 26 mm (1”) proprietary YG Lattice hybrid tweeter with advanced airframe

  • Dual 15 cm (6”) proprietary YG aluminum cone midrange drivers with advanced neodymium motor magnets

  • Triple 18.5 cm (7.25”) proprietary YG aluminum cone midbass drivers with advanced neodymium motor magnets

  • Dual 28 cm (11”) proprietary YG aluminum cone bass drivers with ultra-high field strength motors

CROSSOVER

  • Ultracoherent crossovers at 90 Hz, 360 Hz and 1.85 kHz

  • Exceptional phase alignment over very wide frequency range around crossover point

  • Optimized for frequency response, phase alignment, phase slope and transient response

  • Silver gold alloy capacitors

  • Custom capacitors including pure metal foil models

  • Advanced resistors including multiple foil resistors

  • Advanced resonance-damped inductors

  • Computationally optimised layouts to minimise component interactions

  • Custom, anti-resonance PCB with low dielectric constant and dissipation factor

RESPONSE

  • Usable output extends from below 20 Hz to 40 kHz

  • Exceptionally low distortion throughout range

  • Excellent pair matching

SENSITIVITY

  • 88 dB

IMPEDANCE

  • 4 Ohms average

  • 2.8 Ohms minimum

DIMENSIONS

  • 148 × 35 × 64 cm (H × W × D)

  • 58 × 14 × 25” (H × W × D)

WEIGHT

  • 170 kg per speaker

  • 374 lbs per speaker

FINISHES

  • Standard finishes are silver and black
