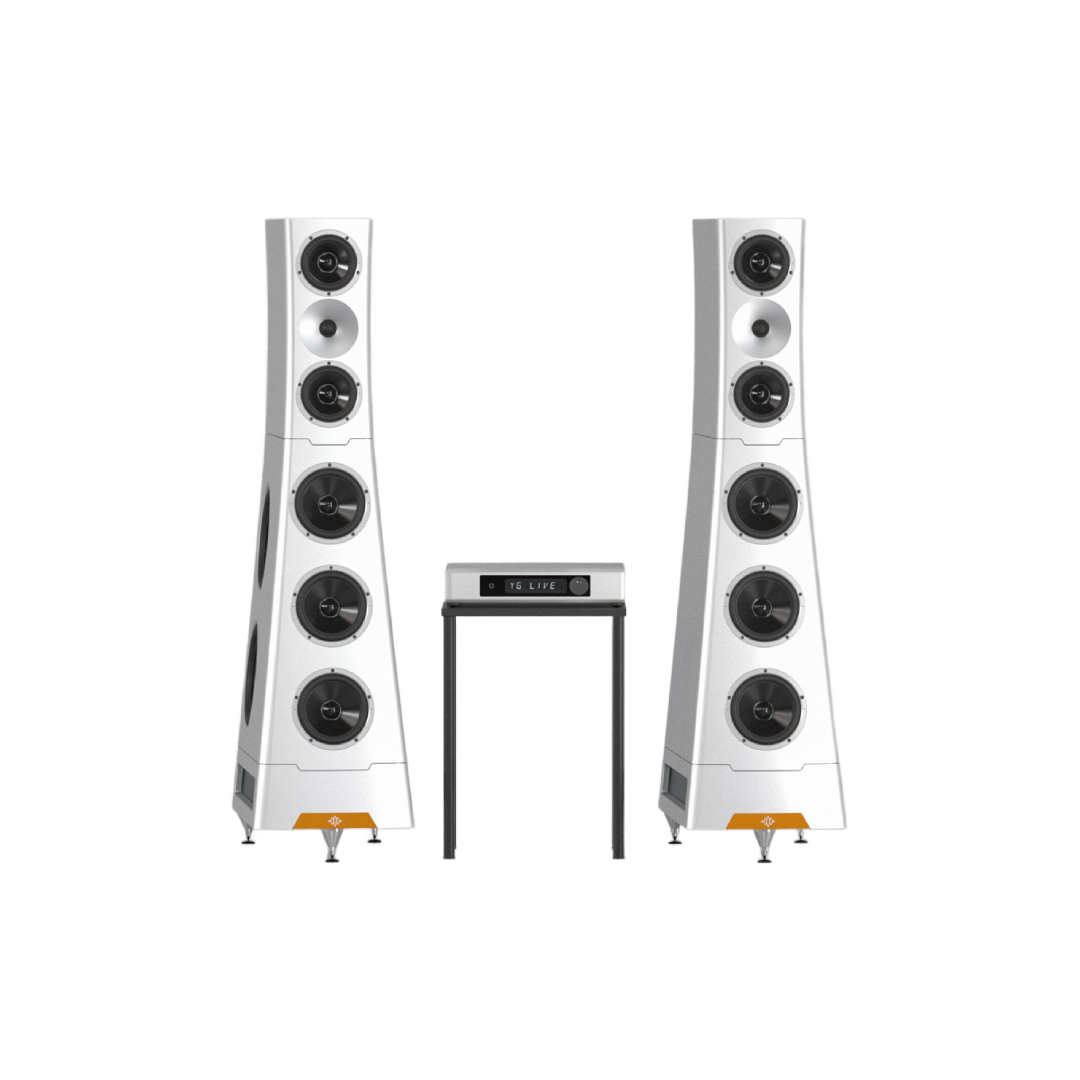

YG Acoustics XX LIVE

$299,500.00

Celebrating the twentieth anniversary of YG Acoustics, XX 3 Live is a unique product: an ultimate performance, complete audio system delivering realism and sound quality matching or exceeding the very best audiophile separates systems, combined with exceptional convenience and flexibility.

XX 3 Live exceeds any expectation from an integrated system: indeed, its unique capabilities and end-to-end design optimization provide unique performance advantages over multi-component, traditional hi-fi systems. It is the culmination of many years of research and development between YG and Bel Canto.

To order or get more information, give us a call at (602) 796-4127

Celebrating the twentieth anniversary of YG Acoustics, XX 3 Live is a unique product: an ultimate performance, complete audio system delivering realism and sound quality matching or exceeding the very best audiophile separates systems, combined with exceptional convenience and flexibility.

XX 3 Live exceeds any expectation from an integrated system: indeed, its unique capabilities and end-to-end design optimization provide unique performance advantages over multi-component, traditional hi-fi systems. It is the culmination of many years of research and development between YG and Bel Canto.

To order or get more information, give us a call at (602) 796-4127

The product of a intensive, multi-year research program, each element of XX 3 Live is the very best available today, with no compromises made across its design and manufacture. As a holistic design, with each part optimized as part of the whole, it sets new standards of performance across bandwidth, phase coherency, impulse response and distortion.

Product Specifications

SPEAKER TYPE

  • 4-way DSP active loudspeaker with controller supporting analog, digital, phono and Roon Ready streaming inputs

DRIVERS

  • 26 mm (1”) proprietary YG Lattice hybrid tweeter with advanced airframe

  • Dual 15 cm (6”) proprietary YG aluminum cone midrange drivers with advanced neodymium motor magnets

  • Triple 18.5 cm (7.25”) proprietary YG aluminum cone midbass drivers with advanced neodymium motor magnets

  • Dual 28 cm (11”) proprietary YG aluminum cone bass drivers with ultra-high field strength motors

AMPLIFIER

  • Dedicated 700 W amp per drive unit = 5.6 kW per channel

  • 0.0006% THD+N 20 Hz to 20 kHz at half peak power

  • 137 dB SNR unweighted ref. peak power

  • 93% efficiency at peak power

  • 250 μΩ output impedance

RESPONSE

  • Usable output extends from 18 Hz to 40 kHz

  • Exceptionally low distortion throughout range

CROSSOVER

  • Advanced DSP crossover optimized using supercomputer and cloud computing, then tuned across thousands of hours of critical listening. Exceptional phase, amplitude and impulse accuracy response at all volume levels.

DIGITAL INPUTS

  • AES (XLR), SPDIF (BNC), TOSLINK, USB, Ethernet AES, SPDIF, TOSLINK: 24 bit up to 192 KS/s

  • Ethernet: 24 bits to 192 KS/s and DSD64

  • USB2 Audio: 24 bits to 384 KS/s and DSD64/128 (DoP)

ANALOG INPUTS

  • 2 × Line inputs RCA

  • Maximum input: 2.2 Vrms

  • Input Impedance: 10 kΩ

PHONO INPUT

  • Sensitivity: MM: 2.5 mV to 5 mV; MC: 0.25 mV to 0.5 mV

  • Input load: MM: 47 kΩ; MC: 50 Ω, 100 Ω, 500 Ω, 1 kΩ

  • RIAA Accuracy: +/-0.25 dB, 50 Hz – 15 kHz

  • THD+N: <0.01% 1 kHz A-weighted SNR: >70 dB A-weighted

  • SNR: >70 dB A-weighted

GENERAL

  • Controller: 94 × 400 × 316 mm (3.7 × 15.7 × 12.4”) H × W × D

  • Controller weight: 8.7 kg (19.2lbs) unpacked

  • Speaker: 148 × 35 × 64 cm (58 × 14 × 25”) H × W × D

  • Speaker weight: 170 kg (374 lbs) per channel unpackaged

FINISHES

  • Standard finishes are silver and black
